| Description | Full-Wavelength Microplate Reader，200~1000nm，Monochromator with 1 nm increments |
| 브랜드 | LABGIC |
| Cat.No. | L-MR-100A |
| Package | 1pc/case |
| 제조국 | China |
| 가격 | 13,720,000 원 |

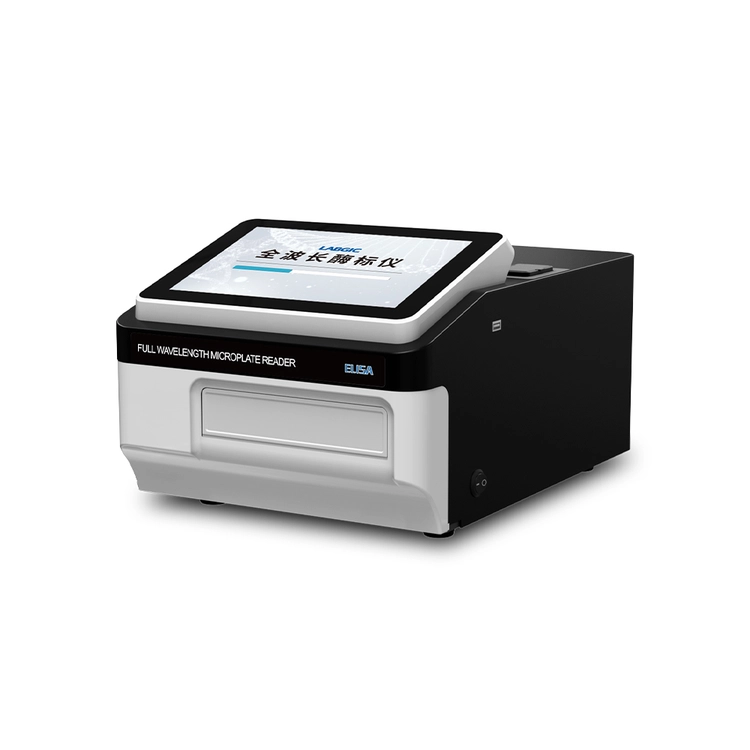

The L-MR-100A Full-Wavelength Microplate Reader is a high-quality enzyme immunoassay analyzer based on a grating monochromator structure, with a wavelength range of 200‒1000nm. It eliminates the need for additional filters and is specifically designed for medical, biological laboratories, and pharmaceutical research institutions. It supports spectral scanning, endpoint detection, and kinetic assays, offering greater flexibility compared to similar products on the market.The L-MR-100A performs microplate shaking and incubation and is compatible with various plate types without requiring extra filters. Featuring an intuitive, user-friendly interface, it provides versatile operation and serves as an all-in-one solution for diverse experimental needs.
Features
• 10.1-inch Touchscreen Display ‒ Enables standalone operation with a graphical interface, simplifying program editing and allowing preset detection protocols
• Built-in Grating Monochromator ‒ Wavelength range: 200‒1000nm, resolution: 1nm
• Xenon Light Source ‒ Long lifespan and stable light output
• Applications ‒ Absorbance measurement, spectral scanning, endpoint, and kinetic assays
• Temperature Control Incubation System ‒ Adjustable range: Room Temp. +4°C to 65°C
• Self-Diagnostic Function ‒ Automatically checks optical path and mechanical components
• Adjustable Shaking Function ‒ Customizable shaking duration and speed
• Connectivity ‒ 2 USB ports + 1 Ethernet port for data export or PC connection
Specifications
Model | L-MR-100A | Carrier Type | 96-well plate, 384-well plate, microplate, cuvette |
Display | 10-inch high-resolution touchscreen | Cuvette Dimensions | 12.5mm×12.5mm×40‒45mm |
Light source | Xenon flash lamp (>109 flashes) | Measurement Speed | 96-well plate (endpoint mode): Fast mode <8s, Precise mode <28s |
Optical System | Grating monochromator, 1nm increments | Linearity (450nm) | R² ≥ 0.999, [0.0‒3.0 Abs] |
Reading Range | 0‒4.0 OD | Absorbance Repeatability (450nm) | [0‒3 Abs] Precise mode: CV <0.5% or SD <0.003 Fast mode: CV <1.0% or SD <0.003 |
Wavelength Range | 200‒1000nm | ||
Wavelength Accuracy | ±2nm | Shaking | Linear, 3 adjustable speeds |
Wavelength Repeatability | ±0.2nm | Interfaces | 2×USB, 1×valve port, 1×RS232 |
Bandwidth | 2.5nm | Power | 300W |
Detection System | Dual silicon photodiodes (1 measurement, 1 reference) | Power Input | AC 100‒240V, 3A, 50/60Hz |
Incubation Temp. Range | RT+4°C~65°C | Fuse | 250V, 3A Φ5×20 |
Temperature Accuracy | ±0.5°C（@37°C ） | Dimensions | 300×430×242mm |
Temperature Uniformity | ±0.5°C（@37°C ） | Net Weight | 15kg |
