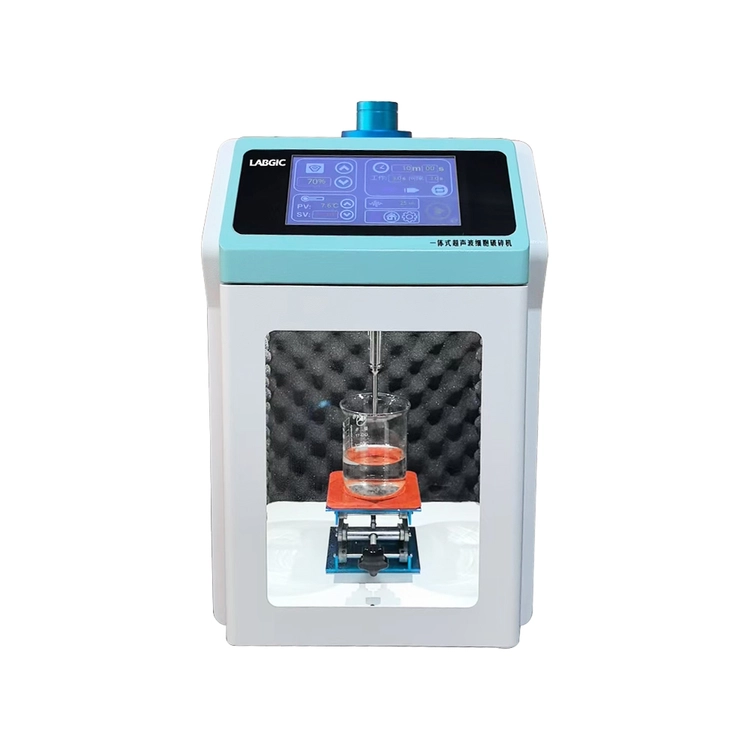

The integrated ultrasonic cell disruptor incorporates a soundproof chamber into the main unit to form a unified system. It features comprehensive functionality, a novel appearance, and reliable performance. Equipped with a large LCD screen, the instrument is centrally controlled by a microprocessor, allowing arbitrary setting of ultrasonic output, interval duration, ultrasonic power, and temperature. It also includes functions such as real-time sample temperature monitoring and display, automatic frequency tracking, and automatic fault alarm.
Features
• Digital integrated circuit enables prolonged ultrasonic operation
• Powder-coated metal casing with high-quality soundproofing materials for superior noise reduction
• Wider main unit design expands workspace for easier operation
• Built-in LED lighting system as standard
• Integrated body design with a 7-inch LCD touchscreen—clear, stable, and free of artifacts, displaying all parameters intuitively
• Compact ultrasonic probe equipped with German IBDI transducer chips for high efficiency and low heat generation
• Automatic horn recognition, frequency tracking, and fault alarm functions
• Titanium alloy probe for high strength, corrosion resistance, and heat resistance
• Supports up to 20 programmable presets for user convenience
• Detachable acrylic viewing window for easy cleaning and observation
Specifications
Model | L-UCD650T | L-UCD1000T | L-UCD1200T | L-UCD1800T |
Description | Integrated Ultrasonic Cell Disruptor,6.5~650W (Standard with UCD-D6) | Integrated Ultrasonic Cell Disruptor,10~1000W (Standard with UCD-D6) | Integrated Ultrasonic Cell Disruptor,12~1200W (Standard with UCD-D20) | Integrated Ultrasonic Cell Disruptor,18~1800W (Standard with UCD-D22) |
Voltage | 220V±5%/50Hz | |||
Output Power | 65～650W | 100～1,000W | 120～1,200W | 180～1,800W |
Adjustable Power | 1～100% | |||
Operating Frequency | 20～25KHz (automatic frequency tracking) | |||
Processing Capacity | 0.1～500mL （requires matching probe） | 0.1～1,000mL （requires matching probe） | 10～1,500mL （requires matching probe） | 1～2,500mL （requires matching probe） |
Timer Range | 0～9999m99.9s | |||
Ultrasonic Pulse Duration Adjustment | 0.1～99.9s (ultrasound on/off) | |||
Temperature Range | 0～100℃ (optional thermostat accessory) | |||
Alarm Function | Fault, temperature control, time | |||
Display | 7-inch TFT touchscreen | |||
Protection Features | Programmable auto-error correction, overload and over-temperature protection display | |||
Password | User password protection | |||
Standard Horn | φ6mm | φ6mm | φ20mm | φ22mm |
Optional Horn | φ2, φ3, φ6, φ8, φ10mm | φ2, φ3, φ6, φ8, φ10, φ13, φ15mm | φ3, φ6, φ8, φ10, φ13, φ15, φ20, φ22mm | φ3, φ6, φ10, φ13, φ15, φ20, φ22, φ25mm |
Optional Borosilicate Glass Thermostatic Cup | 50, 100, 250, 500mL | 50, 100, 250, 500, 1000mL | ||
Net Weight | 15kg | 16.4kg | ||
Dimensions | 310×330×510mm | |||
Price | 1,960,000 | 2,184,000 | 2,520,000 | 3,080,000 |
