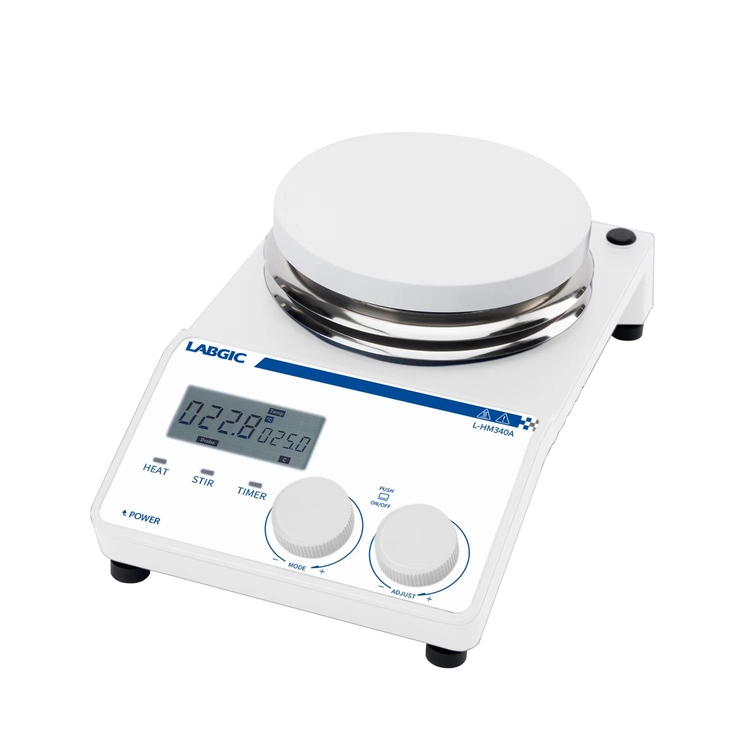

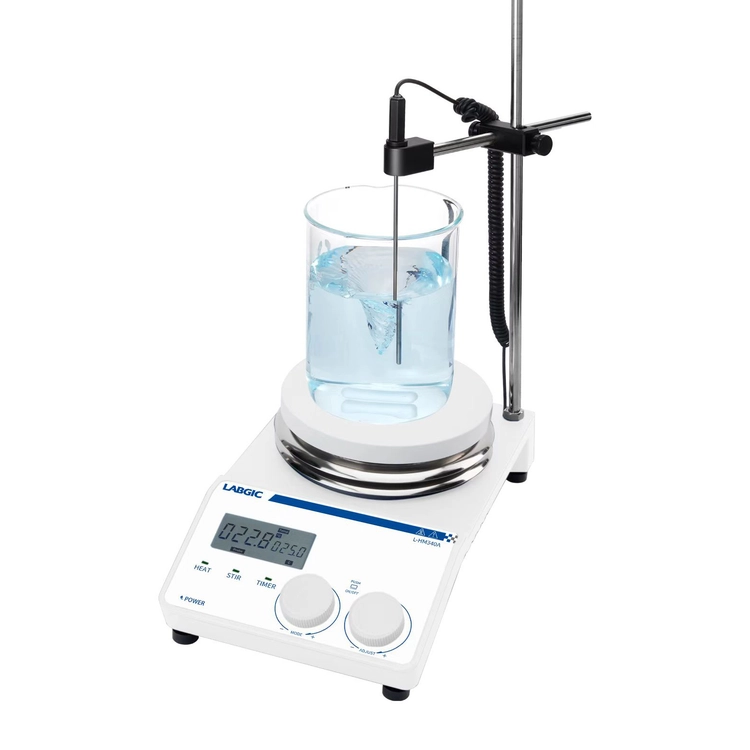

| Description | Digital Hotplate Magnetic Stirrer |
| 브랜드 | LABGIC |
| Cat.No. | L-HM340A |
| Package | 1pc/case |
| 제조국 | China |
| 가격 | 672,000 원 |
Operating Conditions
This instrument is designed for heating liquids in applications such as schools, laboratories, and factories, and is intended for use under the following environmental conditions:
• Altitude not exceeding 2,000 meters
• Ambient temperature between 0°C and 40°C
• Installation type: The product is designed to be connected to indoor power outlets, with voltage fluctuations not exceeding ±10% of the nominal value
• Minimum distance of 100mm between instruments, as well as between instruments and walls
Specifications
Model | L-HM340A |
Voltage [VAC] | 100~120/200~240 |
Frequency [Hz] | 50/60 |
Power[W] | 550 |
Number of Stirring Points | 1 |
Max. Stirring Capacity[L] | 20 |
Max. Stirrer Bar Size [mm] | 80 |
Motor Type | Brushless DC motor |
Motor Input Power [W] | 18 |
Motor Output Power [W] | 10 |
Speed Range [rpm] | 100-1500, increments: 10 |
Speed Display | LCD |
Work Plate Material | Cast Aluminum |
Work Plate Diameter [mm] | Φ135 |
Heating Power [W] | 600 |
Temperature Range [°C] | RT+5-340, increments: 1 |
Temperature Display | LCD |
Temperature Accuracy [°C] | ±0.1 |
Safety Temperature Limit [°C] | 420 |
External Temperature Sensor | PT1000 |
Sensor Control Accuracy [°C] | ±0.2 |
Operating Conditions
This instrument is designed for heating liquids in applications such as schools, laboratories, and factories, and is intended for use under the following environmental conditions:
• Altitude not exceeding 2,000 meters
• Ambient temperature between 0°C and 40°C
• Installation type: The product is designed to be connected to indoor power outlets, with voltage fluctuations not exceeding ±10% of the nominal value
• Minimum distance of 100mm between instruments, as well as between instruments and walls
Specifications
Model | L-HM340A |
Voltage [VAC] | 100~120/200~240 |
Frequency [Hz] | 50/60 |
Power[W] | 550 |
Number of Stirring Points | 1 |
Max. Stirring Capacity[L] | 20 |
Max. Stirrer Bar Size [mm] | 80 |
Motor Type | Brushless DC motor |
Motor Input Power [W] | 18 |
Motor Output Power [W] | 10 |
Speed Range [rpm] | 100-1500, increments: 10 |
Speed Display | LCD |
Work Plate Material | Cast Aluminum |
Work Plate Diameter [mm] | Φ135 |
Heating Power [W] | 600 |
Temperature Range [°C] | RT+5-340, increments: 1 |
Temperature Display | LCD |
Temperature Accuracy [°C] | ±0.1 |
Safety Temperature Limit [°C] | 420 |
External Temperature Sensor | PT1000 |
Sensor Control Accuracy [°C] | ±0.2 |
