| Description | Midi Horizontal Electrophoresis Cell |
| 브랜드 | LABGIC |
| Cat.No. | L-HET-13MD |
| Package | 1pc/case |
| 제조국 | China |
| 가격 | 378,000 원 |

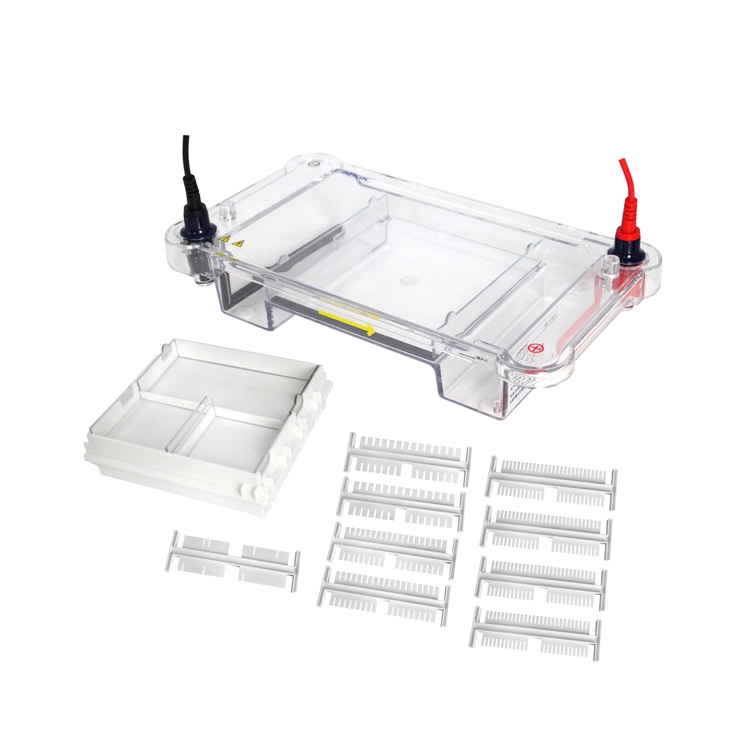

The L-HET-13MD Midi Horizontal Electrophoresis Cell is primarily designed for rapid agarose gel separation electrophoresis of small quantities of DNA and RNA samples. It features a dedicated gel casting platform for user-friendly operation, with trays incorporating ear-shaped structures for easy handling. The system mainly consists of gel trays, lower tank, upper tank, gel caster, and combs, offering four gel preparation areas: 130×130mm, 130×65mm, 65×130mm, 65×65mm
Features
• PCR Electrophoresis: 1mm combs with 27 teeth × 4 rows, allowing simultaneous loading of 108 samples (including Marker)
• Versatile gel tray configurations (W×L): 130×130mm; 130×65mm; 65×130mm; 65×65mm
• Compatible with 14-, 19-, and 27-well combs, supporting both 8-channel and 12-channel pipettes for sample loading
• High-temperature-resistant gel trays remain deformation-free even at 100°C, eliminating the need to cool agarose before pouring
• Leak-proof design with embedded movable electrodes and no rubber gaskets required
Specifications
| Model | L-HET-13MD |
| Gel Dimensions | 130×130mm, 130×65mm, 65×130mm, 65×65mm |
| Comb Specifications | 0.75mm:7+7/14-well, 9+9/19-well;1.0 mm:12+12/27-well;1.5mm:7+7/14-well, 9+9/19-well;2.0mm:3+2/3+3-well |
| Buffer Volume | 1,000mL |
| Platinum Electrodes | Φ0.25mm |
| Dimensions | 300×170×80mm |
| Weight | 2kg |
The L-HET-13MD Midi Horizontal Electrophoresis Cell is primarily designed for rapid agarose gel separation electrophoresis of small quantities of DNA and RNA samples. It features a dedicated gel casting platform for user-friendly operation, with trays incorporating ear-shaped structures for easy handling. The system mainly consists of gel trays, lower tank, upper tank, gel caster, and combs, offering four gel preparation areas: 130×130mm, 130×65mm, 65×130mm, 65×65mm
Features
• PCR Electrophoresis: 1mm combs with 27 teeth × 4 rows, allowing simultaneous loading of 108 samples (including Marker)
• Versatile gel tray configurations (W×L): 130×130mm; 130×65mm; 65×130mm; 65×65mm
• Compatible with 14-, 19-, and 27-well combs, supporting both 8-channel and 12-channel pipettes for sample loading
• High-temperature-resistant gel trays remain deformation-free even at 100°C, eliminating the need to cool agarose before pouring
• Leak-proof design with embedded movable electrodes and no rubber gaskets required
Specifications
| Model | L-HET-13MD |
| Gel Dimensions | 130×130mm, 130×65mm, 65×130mm, 65×65mm |
| Comb Specifications | 0.75mm:7+7/14-well, 9+9/19-well;1.0 mm:12+12/27-well;1.5mm:7+7/14-well, 9+9/19-well;2.0mm:3+2/3+3-well |
| Buffer Volume | 1,000mL |
| Platinum Electrodes | Φ0.25mm |
| Dimensions | 300×170×80mm |
| Weight | 2kg |
