| Description | Mini Horizontal Electrophoresis Cell |
| 브랜드 | LABGIC |
| Cat.No. | L-HET-7MN |
| Package | 1pc/case |
| 제조국 | China |
| 가격 | 266,000 원 |

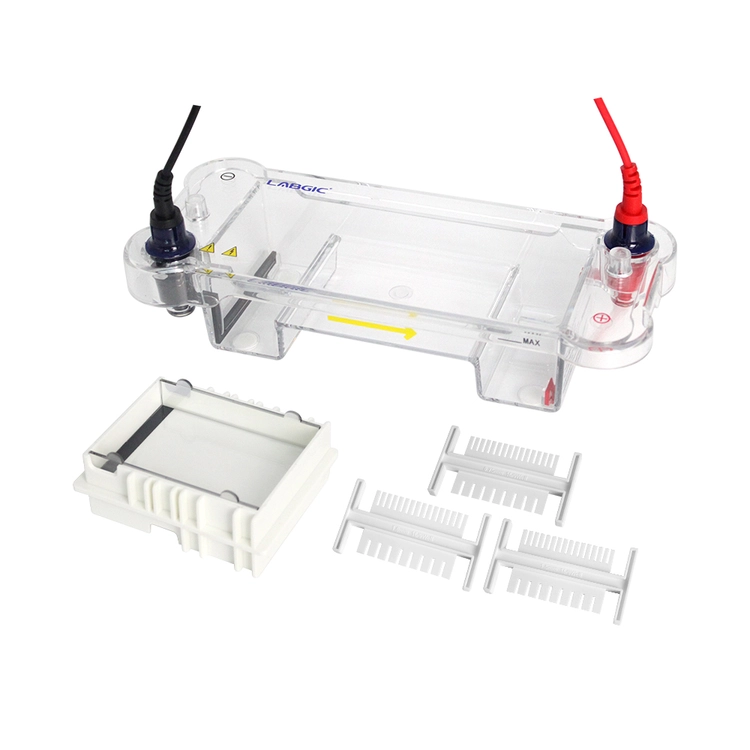

The L-HET-7MN Mini Horizontal Electrophoresis Cell is primarily designed for rapid agarose gel separation electrophoresis of small quantities of DNA and RNA samples. It features a dedicated gel casting platform for user-friendly operation, with trays incorporating ear-shaped structures for easy handling. The system mainly consists of gel trays, lower tank, upper tank, gel caster, and combs, offering two gel preparation areas: 7×10cm and 7×7cm.
Features
• Enables separation and analysis of up to 32 samples within 20 minutes, demonstrating unique advantages in DNA fragment recovery
• High-temperature-resistant gel tray maintains structural integrity at 100°C, eliminating the need to cool agarose to warm temperature before casting
• Leak-proof design with embedded movable electrodes, completely eliminating the risk of liquid leakage associated with rubber sealing rings
Specifications
| Model | L-HET-7MN |
| Gel Dimensions | 70×70mm, 70×100mm |
| Comb Specifications | 0.75mm: 9/16-well; 1.0mm: 9/16-well; 1.5mm: 9/16-well |
| Number of Combs | 3 double-sided combs |
| Buffer Volume | 260mL |
| Platinum Electrodes | Φ0.25mm |
| Dimensions | 260×110×80mm |
| Weight | 1.5kg |
The L-HET-7MN Mini Horizontal Electrophoresis Cell is primarily designed for rapid agarose gel separation electrophoresis of small quantities of DNA and RNA samples. It features a dedicated gel casting platform for user-friendly operation, with trays incorporating ear-shaped structures for easy handling. The system mainly consists of gel trays, lower tank, upper tank, gel caster, and combs, offering two gel preparation areas: 7×10cm and 7×7cm.
Features
• Enables separation and analysis of up to 32 samples within 20 minutes, demonstrating unique advantages in DNA fragment recovery
• High-temperature-resistant gel tray maintains structural integrity at 100°C, eliminating the need to cool agarose to warm temperature before casting
• Leak-proof design with embedded movable electrodes, completely eliminating the risk of liquid leakage associated with rubber sealing rings
Specifications
| Model | L-HET-7MN |
| Gel Dimensions | 70×70mm, 70×100mm |
| Comb Specifications | 0.75mm: 9/16-well; 1.0mm: 9/16-well; 1.5mm: 9/16-well |
| Number of Combs | 3 double-sided combs |
| Buffer Volume | 260mL |
| Platinum Electrodes | Φ0.25mm |
| Dimensions | 260×110×80mm |
| Weight | 1.5kg |
