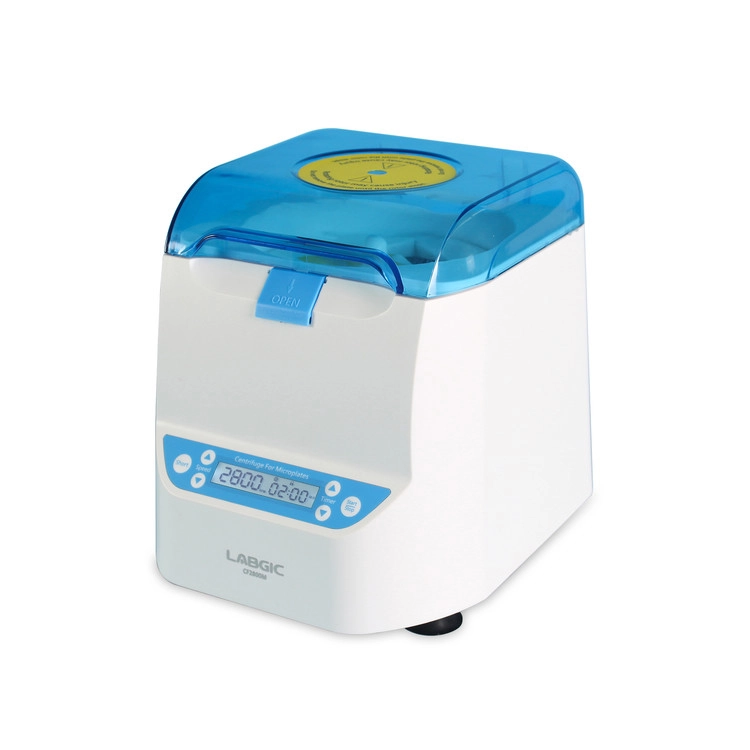

The Centrifuge for Microplate is a specialized instant centrifuge designed for microplates, effectively centrifuging hanging droplets. The microplate is vertically loaded into the rotor through the top slot, allowing liquid to remain at the bottom of the wells due to surface tension, minimizing the risk of leakage.
Features
• User-friendly interface with real-time display of all operational and setting parameters, enabling easy monitoring of device status
• Brushless DC motor ensures low noise, minimal interference, and maintenance-free operation
• Automatic stop function when the lid is opened
• Momentary operation mode for quick spins
• Rapid acceleration, reaching maximum speed from standstill in just 10 seconds
• Short braking time, coming to a complete stop from top speed in only 4 seconds
Operating Conditions
• temperature: 0°C to 35°C
• Relative humidity: ≤70%
• Power supply: AC 110‒220V, 50‒60Hz
Specifications

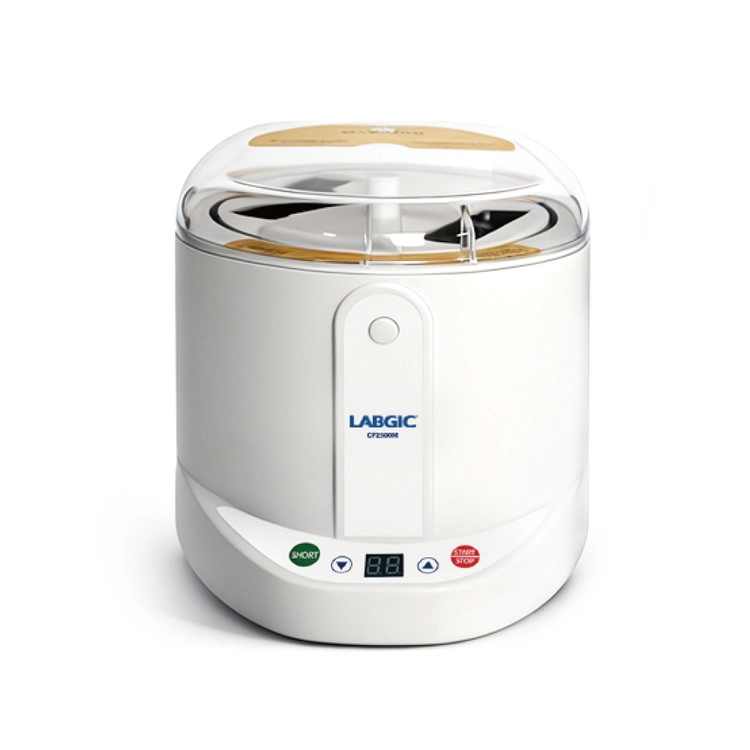

Model | CF2500M | CF2800M |
Description | Centrifuge for Microplate(only for pcr plate) | Centrifuge for Microplate(only for pcr plate) |
Speed Range | 2500rpm（Fixed） | 2200~800rpm |
Timer Range | 1~99 min / 1~99 sec (switchable display) | 15sec ~1min59sec |
Max RCF | 500xg | 550xg |
Acceleration Time | ≤20 sec (0 → 2500 rpm) | ≤10 sec (0 → 2800 rpm) |
Deceleration Time | ≤10 sec (2500 → 0 rpm) | ≤4 sec (2800 → 0 rpm) |
Lid-Open Stop | Available | |
Short Run (Pulse) | Available | |
Capacity | 2 standard PCR microplates | |
Voltage | AC110~220V/50-60Hz | |
Power Input | 20W | 45W |
Fuse | / | 250V/3A Ф5×20 |
Dimensions | 350×320×200mm | 260×240×226mm |
Weight | 8.0kg | 3.3kg |
Price | 364,000 | 406,000 |
