| Description | Ultramicro UV-Vis Spectrophotometer |
| 브랜드 | LABGIC |
| Cat.No. | L-SP-LB |
| Package | 1pc/case |
| 제조국 | China |
| 가격 | 7,700,000 원 |

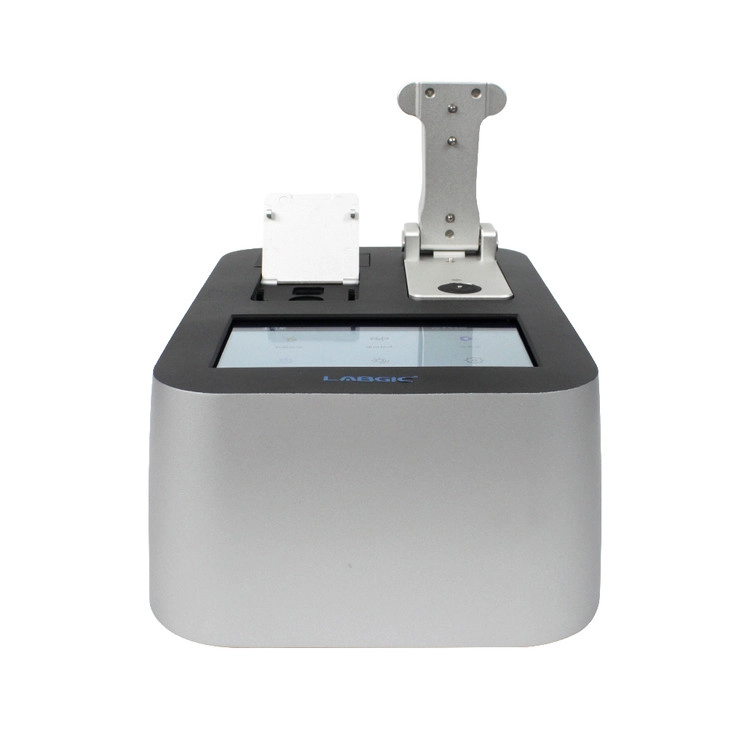

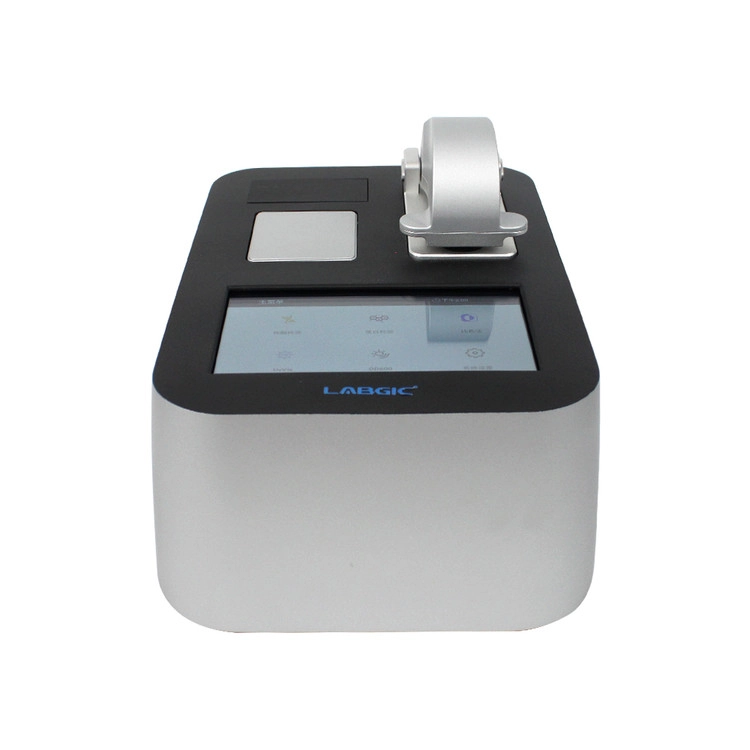

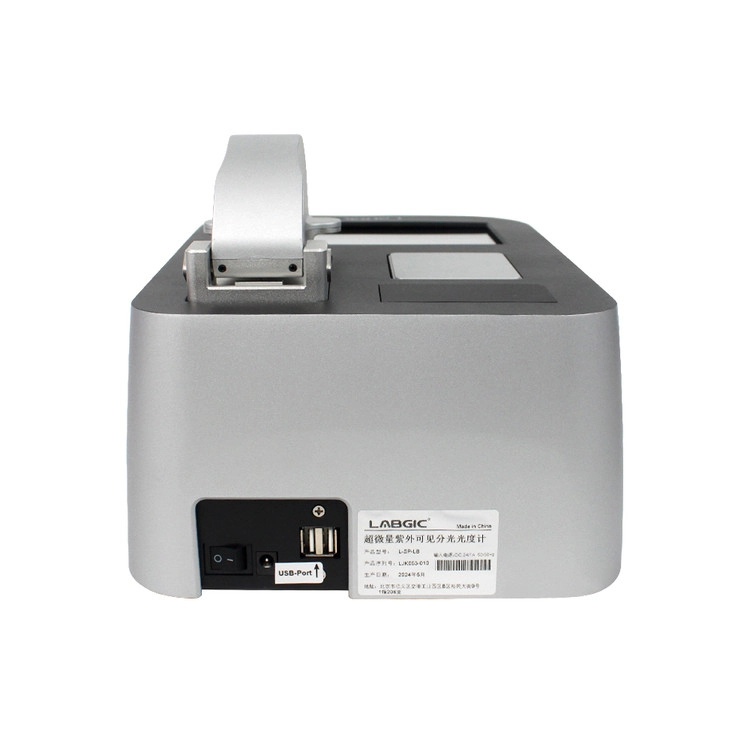

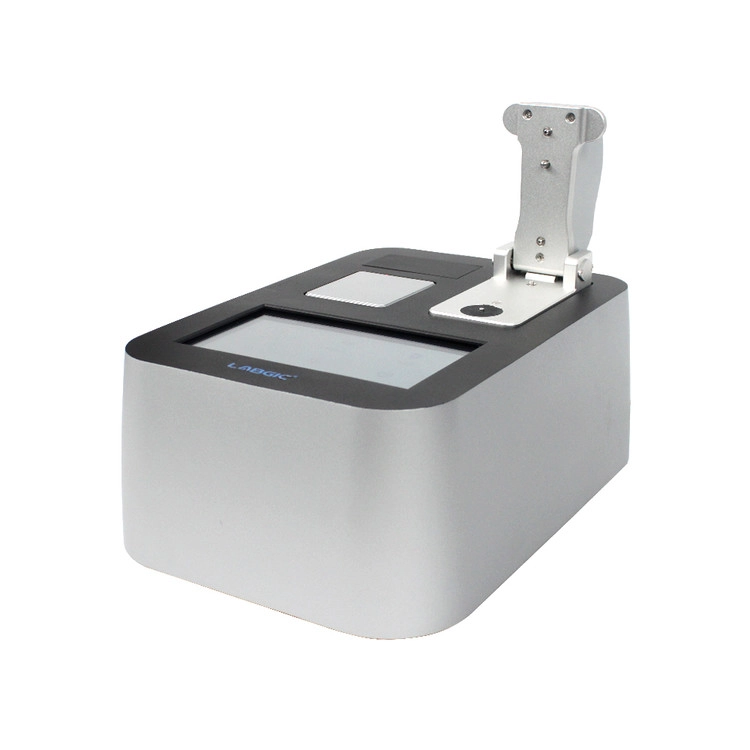

LABGIC L-SP-LB and L-SP-HB both are full-wavelength (190 - 850nm) ultra-micro UV-Vis spectrophotometer that don’t require a computer. It can quickly and accurately detect nucleic acids, proteins, and cell solutions. It is also equipped with a cuvette mode for detecting the concentration of culture media such as bacteria. For nucleic acid detection, only 0.5 to 2 μL of sample is required for each measurement. The sample can be directly dropped onto the loading plate without the need for accessories such as cuvettes or capillaries. After the measurement, the sample can be either wiped off directly or recovered with a pipette. All steps are simple, fast, and seamless. It can be applied in various fields such as clinical disease diagnosis, blood transfusion safety, forensic identification, environmental microorganism detection, food safety detection, and molecular biology research.
• Ambient Temperature: 5°C - 40°C
• Humidity: ≤ 80%
• Power Supply: DC24V
Specifications
Model | L-SP-LB |
Wavelength Range | 190 - 850nm |
Optical Path | 0.02mm, 0.05mm (for high-concentration measurement) 0.2mm, 1.0mm (for normal-concentration measurement) |
Light Source | Xenon Flash Lamp |
Absorbance Accuracy | 0.003Abs (at 0.2mm optical path) |
Absorbance Range(equivalent to 10mm) | 0.04 - 300A |
OD600 | Absorbance Range: 0 - 6.000 Abs Absorbance Stability: [0, 3) ≤ 0.5%, [3, 4) ≤ 2% Absorbance Repeatability: [0, 3) ≤ 0.5%, [3, 4) ≤ 2% |
Operating System | Android |
Weight | 5kg |
Operation Interface | 7-inch Touch Screen with 1024×600 High-Definition Display |
Sample Volume | 0.5 - 2μL |
Nucleic Acid Detection Range | 2 - 15000ng/μL (dsDNA) |
Detector | HAMAMATSU UV-Enhanced CMOS Linear Array Sensor |
Absorbance Accuracy | ±1% (at 7.332Abs and 260nm) |
Detection Time | < 6s |
Power Adapter | DC 24V |
Power Consumption | 25W |
Standby Power Consumption | 5W |
Dimensions | 200mm×260mm×165mm |
