| Description | Homogenizer/Disperser |
| 브랜드 | LABGIC |
| Cat.No. | L-HO-M |
| Package | 1pc/case |
| 제조국 | China |
| 가격 | 154,000 원 |

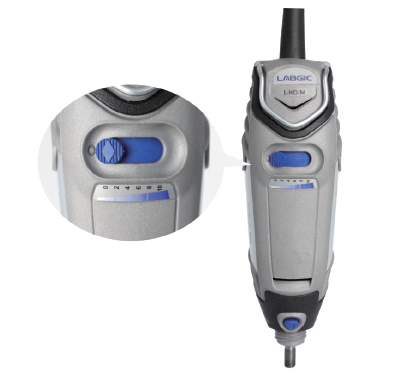

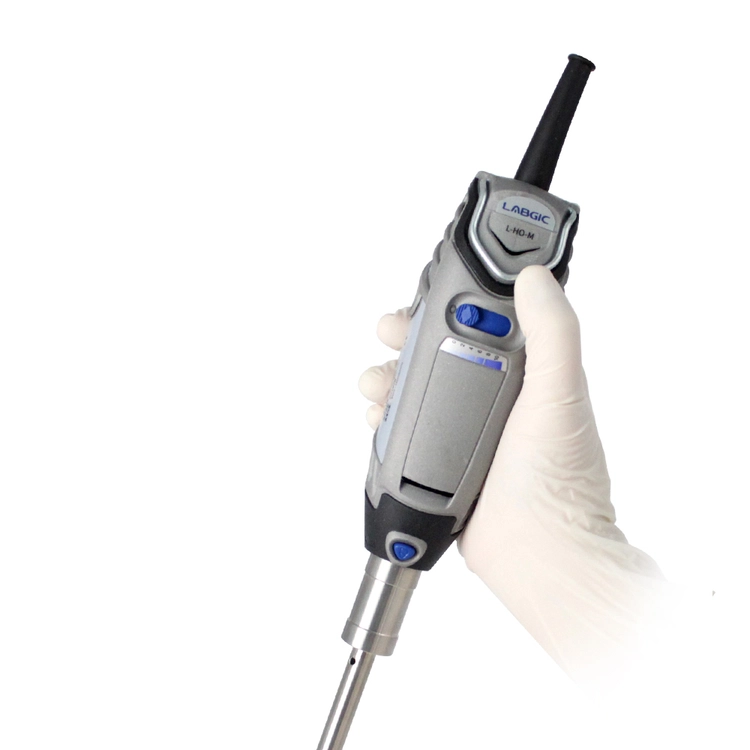

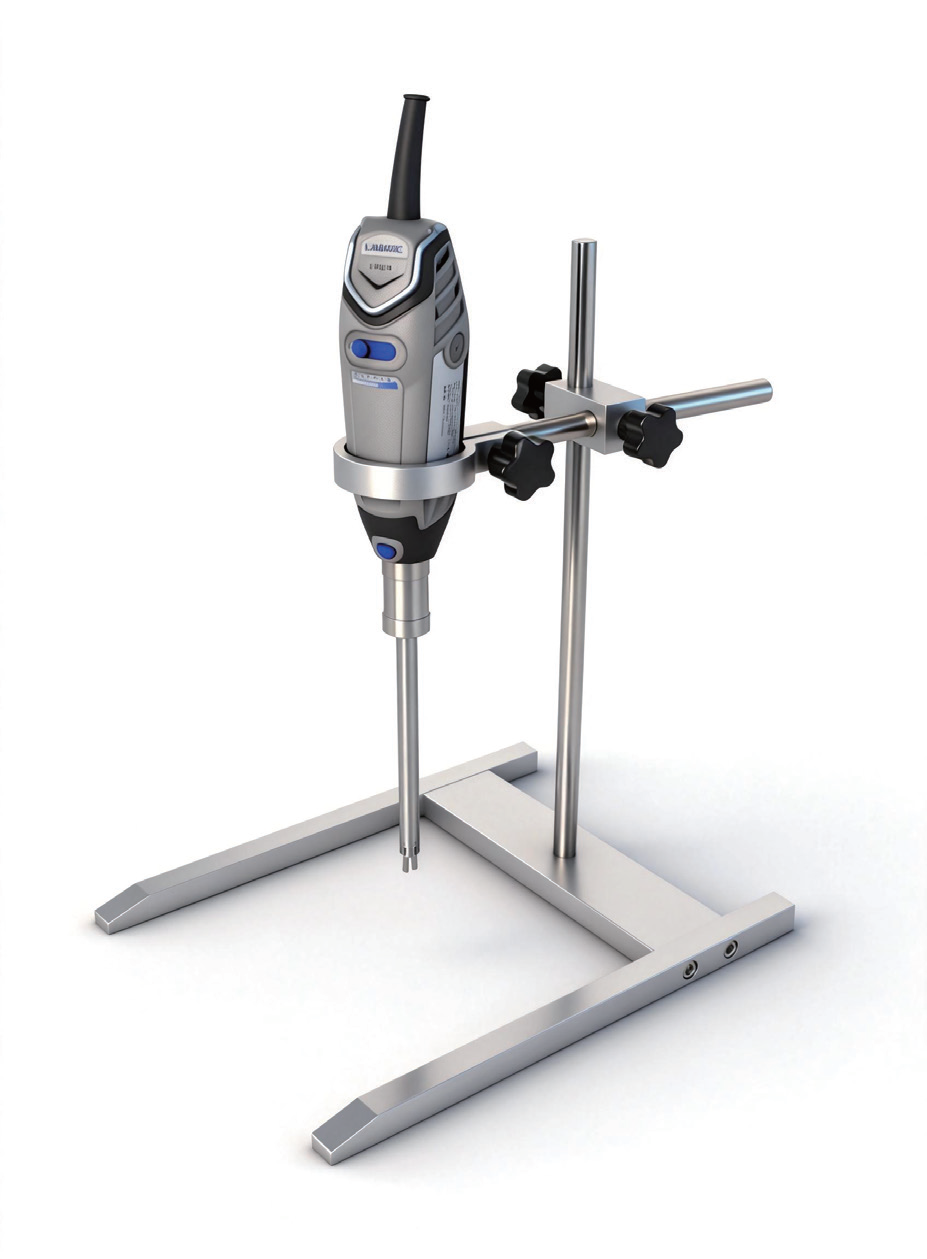

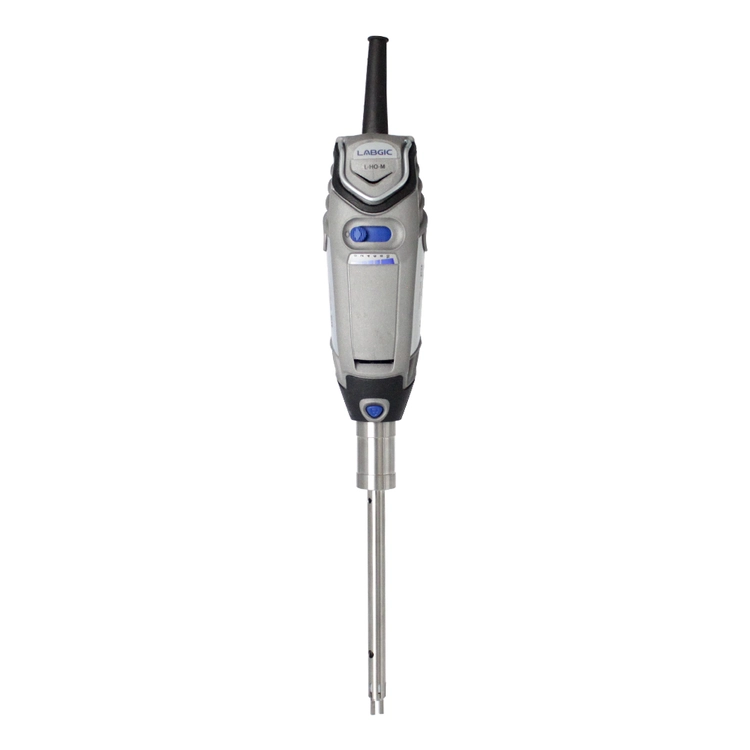

L-HO-M is a high-speed homogenizer/disperser instrument based on stator/rotor technology, featuring a dispersing head and its internal stator/rotor that can be easily disassembled for cleaning purposes.The dispersing head comes pre-assembled and ready for immediate use. The instrument is designed exclusively for laboratory applications, serving industries such as chemicals, cosmetics, pharmaceuticals, pigments, as well as university and medical research laboratories.For working volumes ranging from 0.1 mL to 50 mL, it is recommended to use a dispersing head equipped with a 5 mm stator. For working volumes ranging from 1 mL to 150 mL, a 7 mm stator is advised.For working volumes ranging from 1 mL to 250 mL, a 10 mm stator should be selected.
The approximate speed ranges for each gear are as follows:
Gears 1-2: 8,000‒14,000 RPM
Gears 3-4: 15,000‒19,000 RPM
Gears 5-6: 20,000‒23,000 RPM
Gears 7-8: 24,000‒28,000 RPM
Gears 9-10: 29,000‒32,000 RPM
Specifications
| Model | L-HO-M |
| Voltage | 220~240V 50/60Hz; 100V~120V 60Hz |
| Power | 160W |
| Rotor Tip Speed | 6.3~14m/s |
| Weight | 535g |
| Noise Level | 72dB(A) |
| Speed Settings | 5 adjustable levels |
| Operating Conditions | 0~40°C, 85%RH |
| Protection Class | IP20 |
