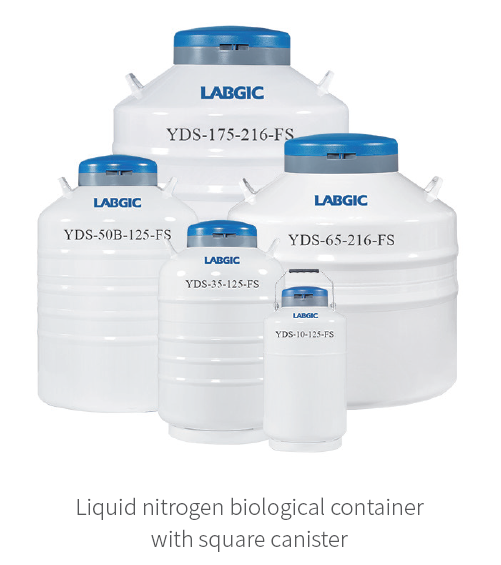

Liquid nitrogen biological containers are the primary equipment for the storage of biological samples. They scientifically address the challenge of significant evaporation loss of liquid nitrogen due to thermal convection, conduction, and radiation during storage. With the advancement of science and technology and the progress of human society, high-vacuum multilayer insulation technology, along with new materials and processes, has been adopted. This has endowed liquid nitrogen containers with excellent insulation properties, allowing for the reduction of natural evaporation loss of the stored liquid nitrogen (-196°C) to even lower levels. As a result, liquid nitrogen container products are widely used in fields such as animal husbandry, medical and scientific research, and mechanical processing. Utilizing liquid nitrogen as a refrigerant, they are employed to preserve animal specimens, organs, microbial strains, and other biological samples.
Features
• The container's outer shell and inner tank are made of aluminum alloy sheets, which are lightweight, high in strength at low temperatures, and corrosion-resistant
• The neck tube is constructed from fiberglass reinforced plastic, offering high mechanical strength and a low thermal conductivity coefficient
• The multilayer insulation employs aluminum foil with exceptionally good reflective properties as the reflective screen, and materials with low thermal conductivity and low outgassing rates as the insulating material, to minimize heat radiation
• The interlayer between the container's outer shell and inner tank is in a high vacuum state to prevent thermal convection of gases. Additionally, an adsorbent with a high adsorption capacity at low temperatures is used to ensure the container's performance remains stable and reliable over a long period, with a product lifespan of no less than 5 years
| Description | Cat.No. | Package | Price |

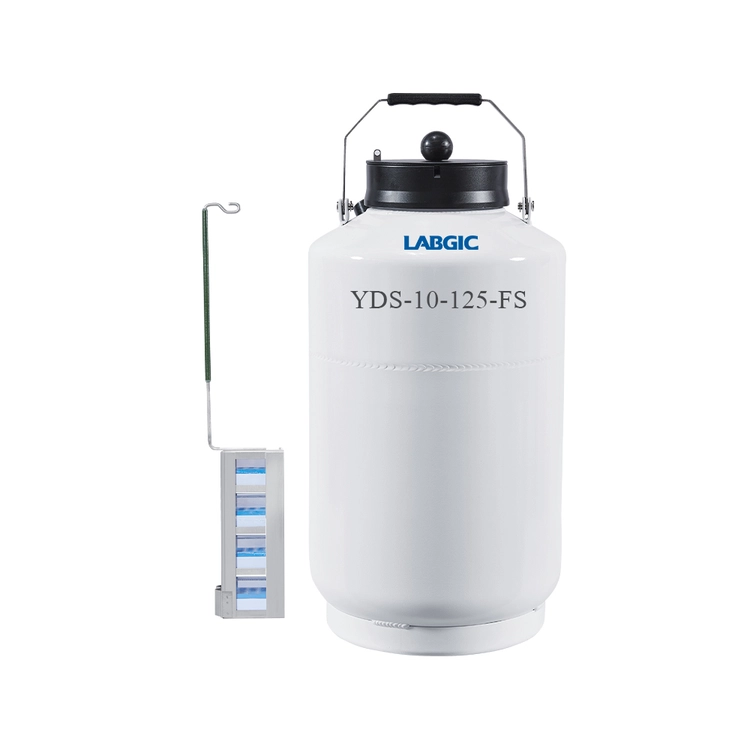

| Liquid Nitrogen Biological Container，10L, 125mm Neck opening（Standard with 1*Square canister（4 floors）with 25 well racks，Lockable lid） | YDS-10-125-FS | 1pc/case | 476,000 |

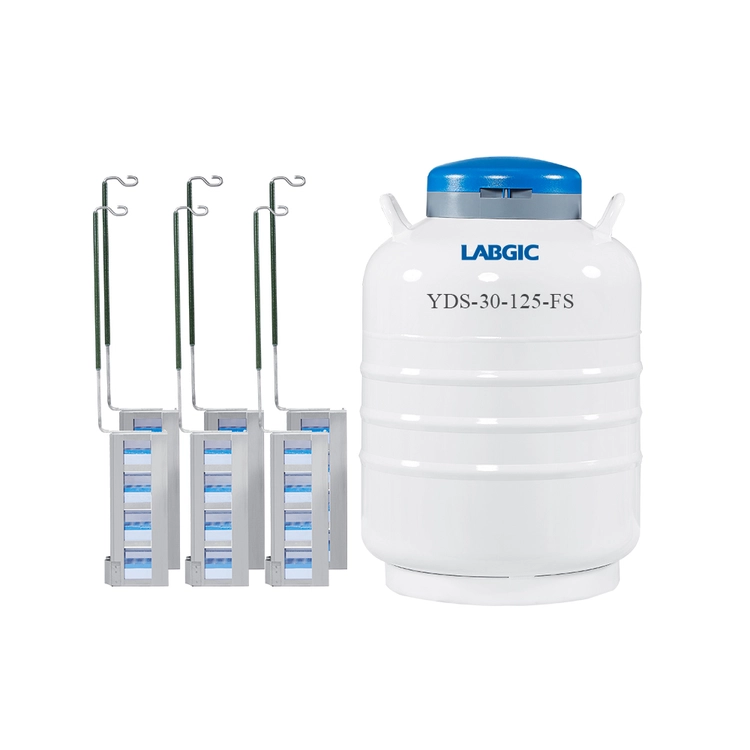

| Liquid Nitrogen Biological Container，30L, 125mm Neck opening（Standard with 6*Square canisters（4 floors）with 25 well racks，Lockable lid） | YDS-30-125-FS | 1pc/case | 826,000 |

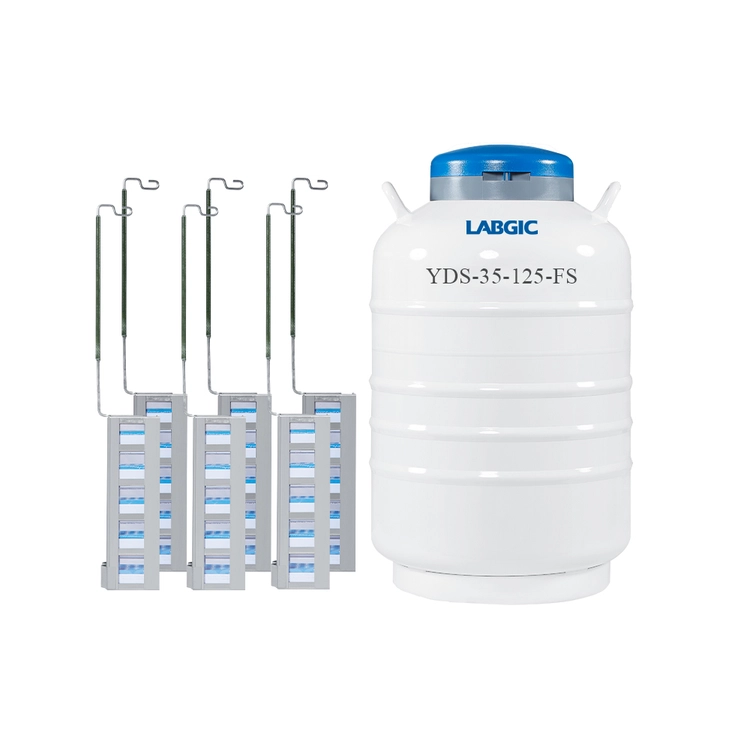

| Liquid Nitrogen Biological Container，35L, 125mm Neck opening（Standard with 6*Square canisters（5 floors）with 25 well racks，Lockable lid） | YDS-35-125-FS | 1pc/case | 812,000 |

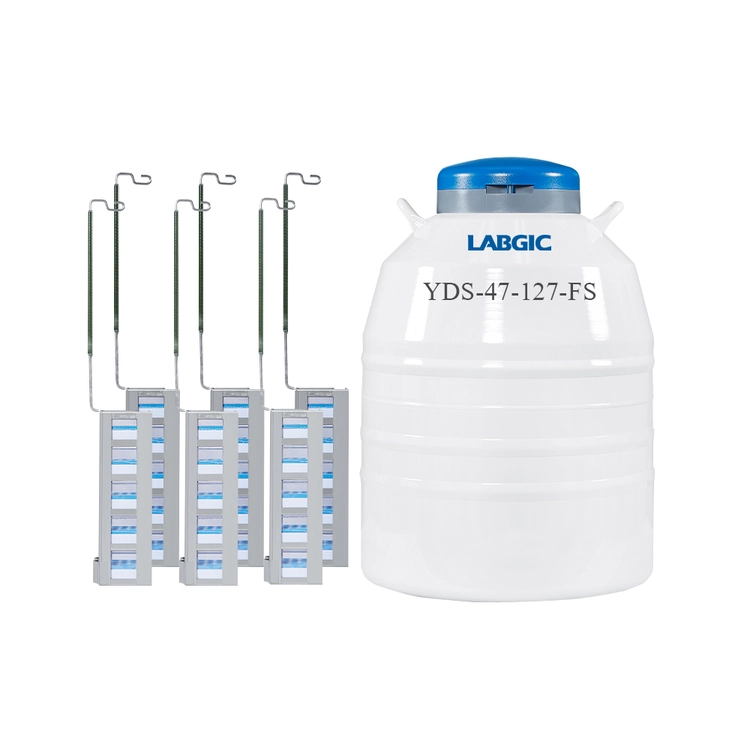

| Liquid Nitrogen Biological Container，47L, 127mm Neck opening（Standard with 6*Square canisters（5 floors）with 25 well racks，Lockable lid） | YDS-47-127-FS | 1pc/case | 1,218,000 |

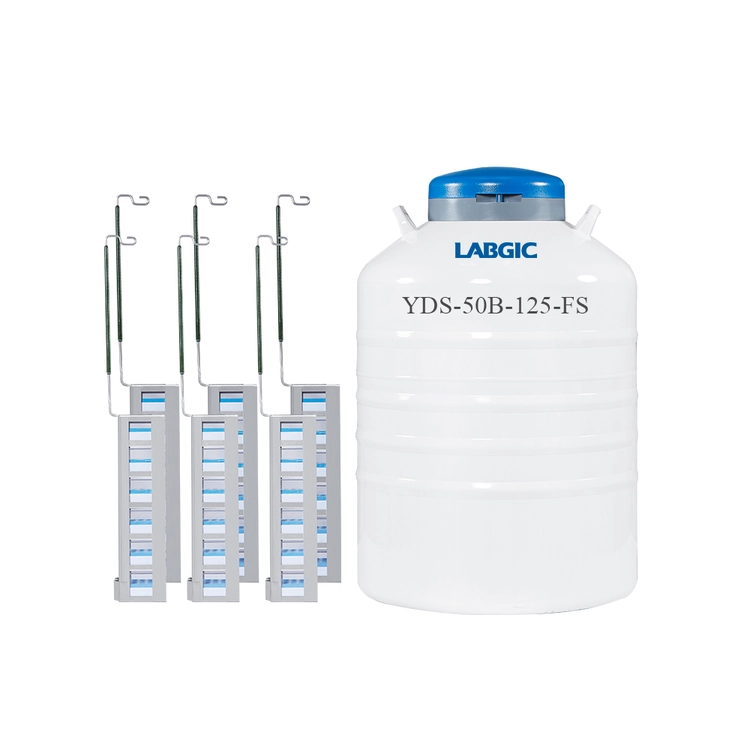

| Liquid Nitrogen Biological Container，50L, 125mm Neck opening（Standard with 6*Square canisters（6 floors）with 25 well racks，Lockable lid） | YDS-50B-125-FS | 1pc/case | 1,260,000 |

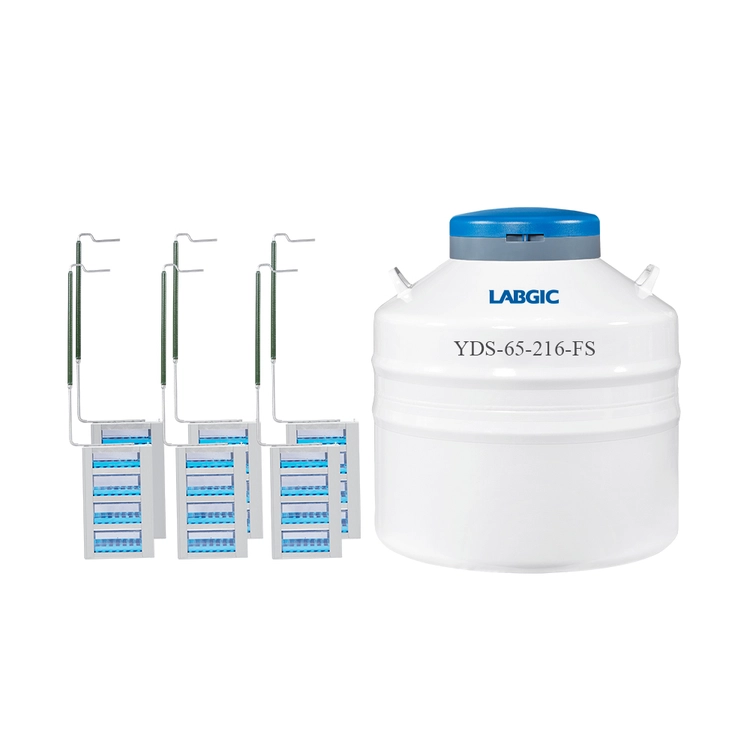

| Liquid Nitrogen Biological Container，65L, 216mm Neck opening（Standard with 6*Square canisters（4 floors）with 81 well racks，Lockable lid） | YDS-65-216-FS | 1pc/case | 2,380,000 |

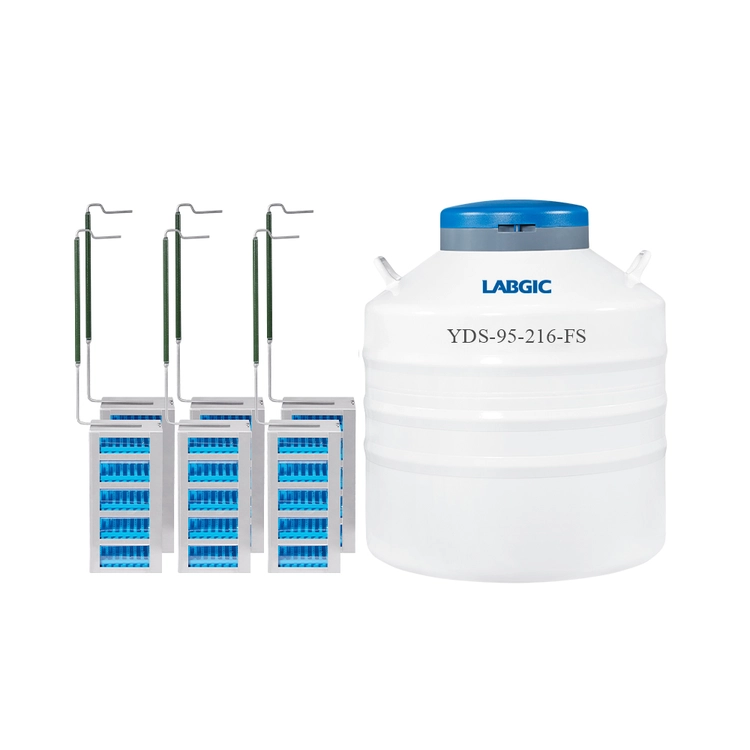

| Liquid Nitrogen Biological Container，95L, 216mm Neck opening（Standard with 6*Square canisters（5 floors）with 81 well racks，Lockable lid） | YDS-95-216-FS | 1pc/case | 2,800,000 |

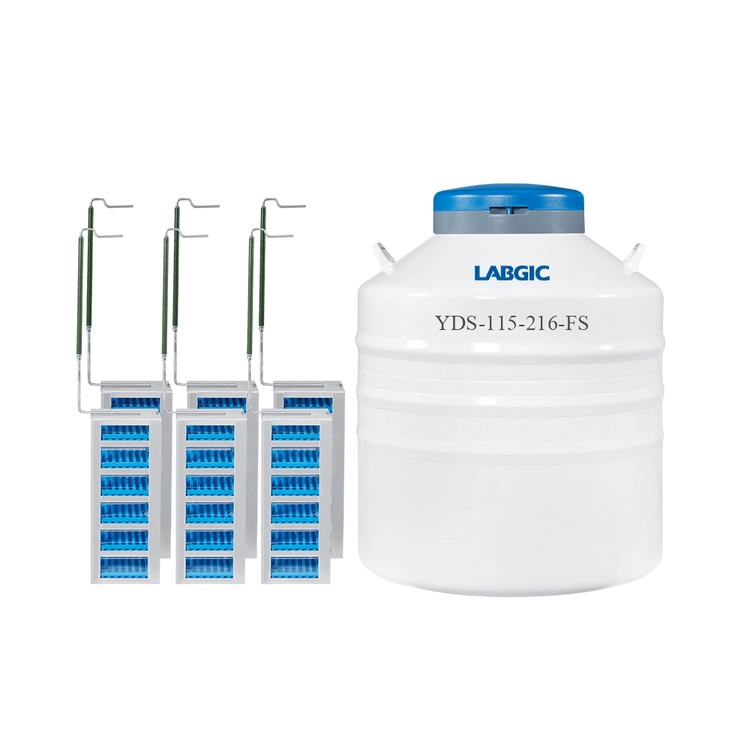

| Liquid Nitrogen Biological Container，115L, 216mm Neck opening（Standard with 6*Square canisters（6 floors）with 81 well racks，Lockable lid） | YDS-115-216-FS | 1pc/case | 3,080,000 |

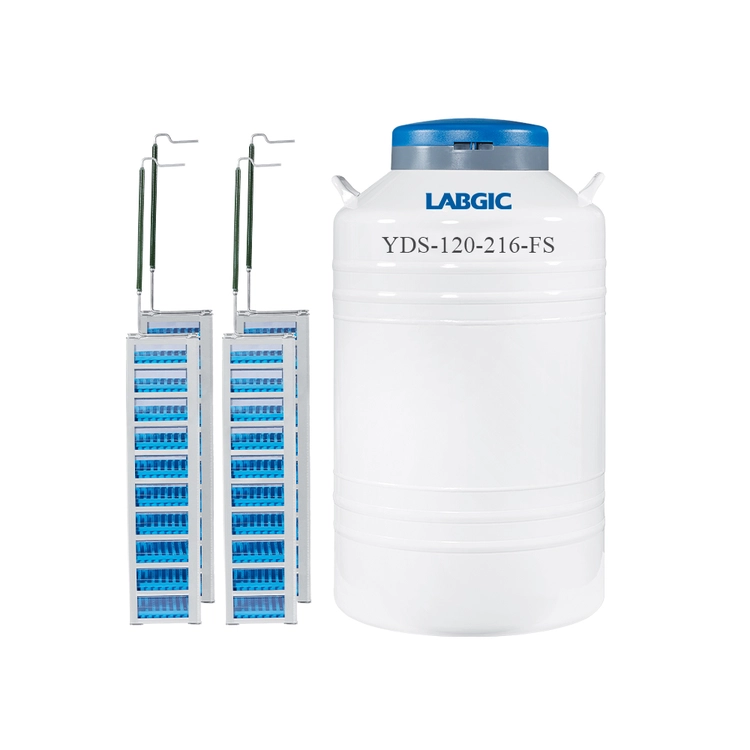

| Liquid Nitrogen Biological Container，120L, 216mm Neck opening（Standard with 4*Square canister（10 floors）with 81 well racks，Lockable lid） | YDS-120-216-FS | 1pc/case | 3,500,000 |

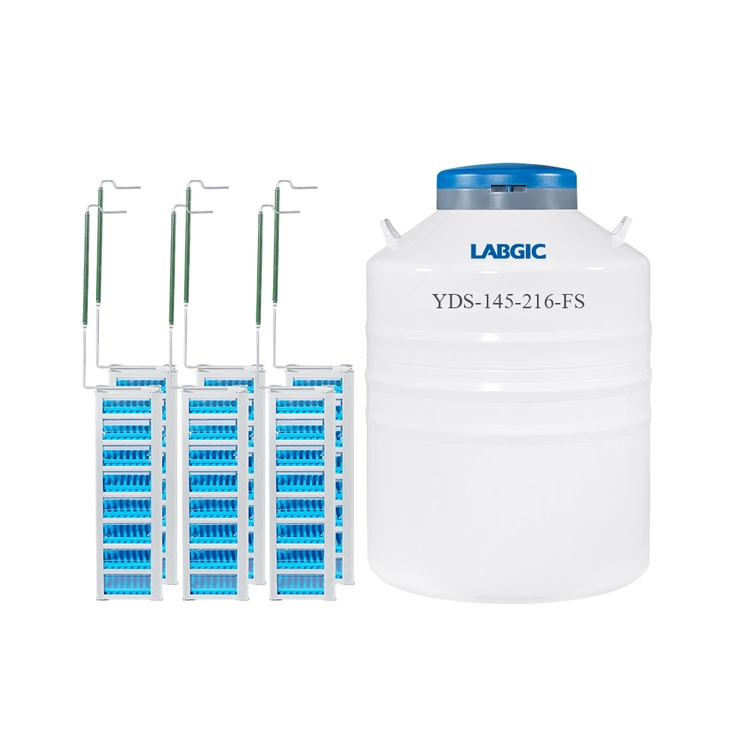

| Liquid Nitrogen Biological Container，145L, 216mm Neck opening（Standard with 6*Square canisters（8 floors）with 81 well racks，Lockable lid） | YDS-145-216-FS | 1pc/case | 3,500,000 |

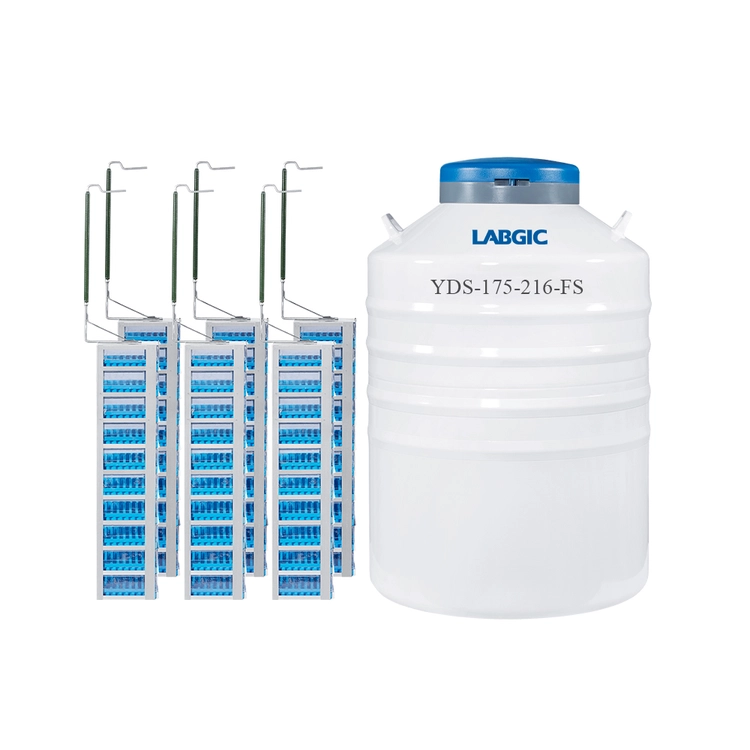

| Liquid Nitrogen Biological Container，175L, 216mm Neck opening（Standard with 6*Square canisters（10 floors）with 81 well racks，Lockable lid） | YDS-175-216-FS | 1pc/case | 4,060,000 |
