| Description | Blue LED Transilluminator |
| 브랜드 | LABGIC |
| Cat.No. | BL-20 |
| Package | 1pc/case |
| 제조국 | China |
| 가격 | 210,000 원 |

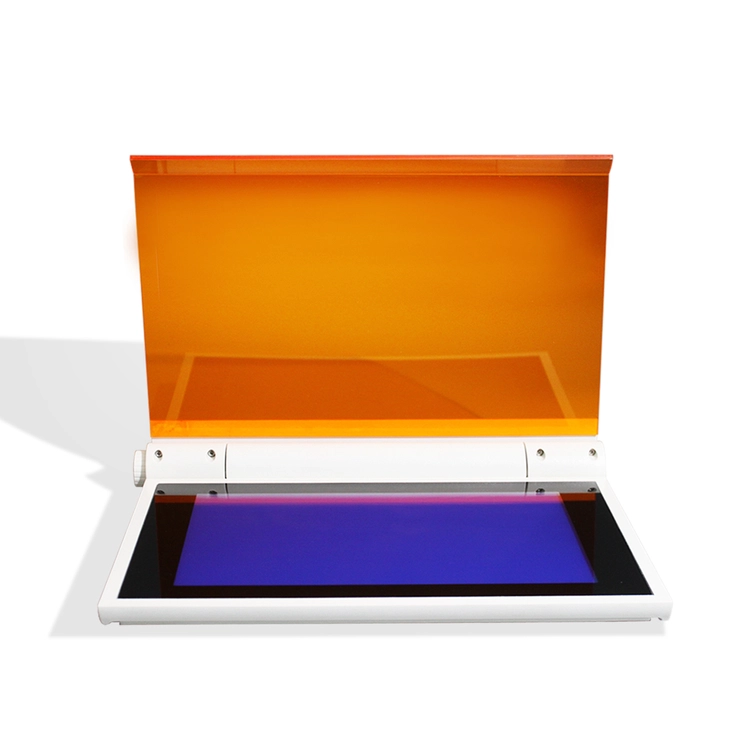

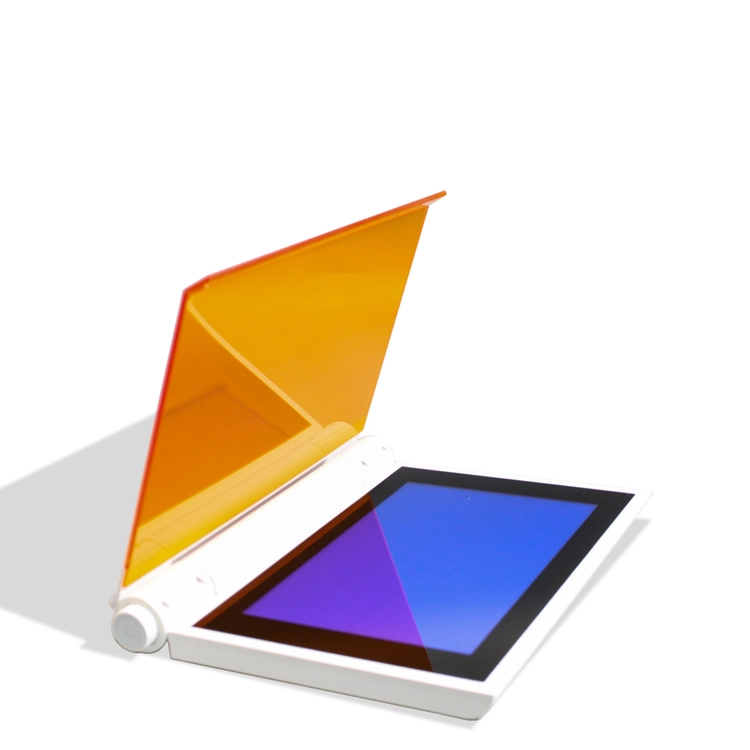

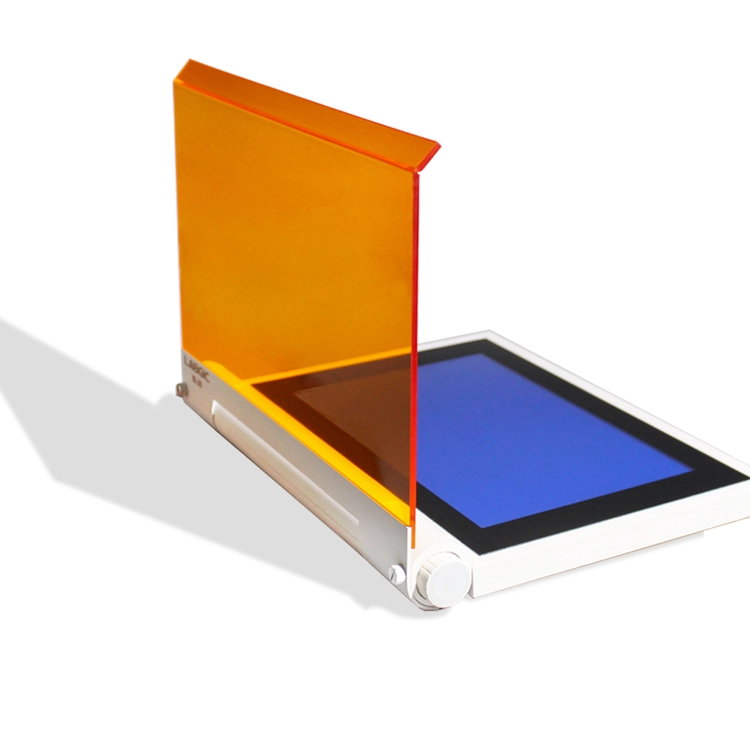

BL-20 is an extraordinary blue light LED transilluminator for the detection of nucleic acids or protein under non-UV conditions. The wavelength of the special blue LED lights is 470 nm hence no damage to your nucleic acids or protein and suitable for the common nucleic acid dyes. Since UV is not used, there is no need for any special personal eye or skin protection. An amber filter, on hinges, is lowered into position once your gel is mounted. The instrument is widely used in scientific research institutions and enterprisesinvolved in molecular biology, molecular genetics, medicine and health, biological products, agriculture and other life science research fields.
Features
• Bottom-up LED illumination, improve the observational and imaging quality
• Compact sealing structure design ensures that the cutting operation and the cleaning and cutting platform are free of leakage
• Blue light source good for 30,000 hours
• No risk of UV damage for high quality work experience
• Gel-cutting knife can cut out the target from the gel for further experiment
• A mini darkroom for viewing gel or photographing
Specifications
| Model | BL-20 |
| Dimensions | 265×195×40 mm |
| Gel viewing dimensions | 200×120 mm |
| Voltage | 100-240Vac |
| Current | 1.0A |
| LED source | Built-in blue light LED module |
| LED life | >30,000h |
| Emission | 470nm |
| Store temperature | 25°C |
| Operating temperature | RT~ 40°C |
| Automatic power-off | 5min |
| Filter type | Amber filter |
BL-20 is an extraordinary blue light LED transilluminator for the detection of nucleic acids or protein under non-UV conditions. The wavelength of the special blue LED lights is 470 nm hence no damage to your nucleic acids or protein and suitable for the common nucleic acid dyes. Since UV is not used, there is no need for any special personal eye or skin protection. An amber filter, on hinges, is lowered into position once your gel is mounted. The instrument is widely used in scientific research institutions and enterprisesinvolved in molecular biology, molecular genetics, medicine and health, biological products, agriculture and other life science research fields.
Features
• Bottom-up LED illumination, improve the observational and imaging quality
• Compact sealing structure design ensures that the cutting operation and the cleaning and cutting platform are free of leakage
• Blue light source good for 30,000 hours
• No risk of UV damage for high quality work experience
• Gel-cutting knife can cut out the target from the gel for further experiment
• A mini darkroom for viewing gel or photographing
Specifications
| Model | BL-20 |
| Dimensions | 265×195×40 mm |
| Gel viewing dimensions | 200×120 mm |
| Voltage | 100-240Vac |
| Current | 1.0A |
| LED source | Built-in blue light LED module |
| LED life | >30,000h |
| Emission | 470nm |
| Store temperature | 25°C |
| Operating temperature | RT~ 40°C |
| Automatic power-off | 5min |
| Filter type | Amber filter |
